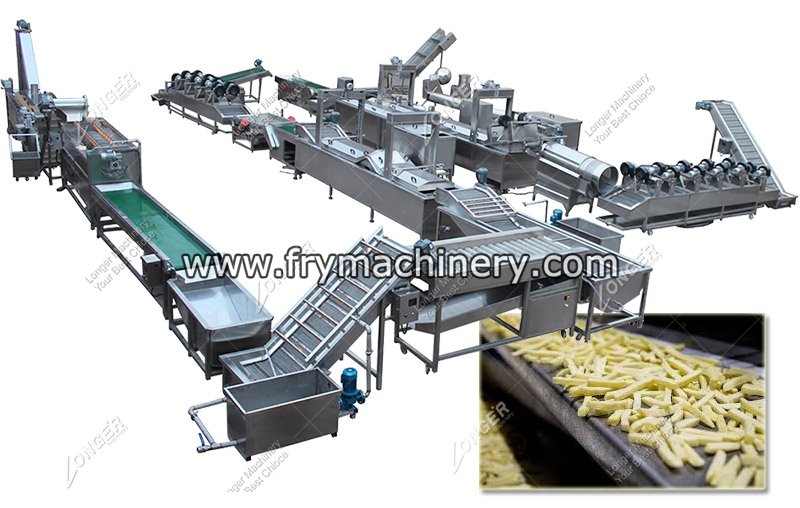

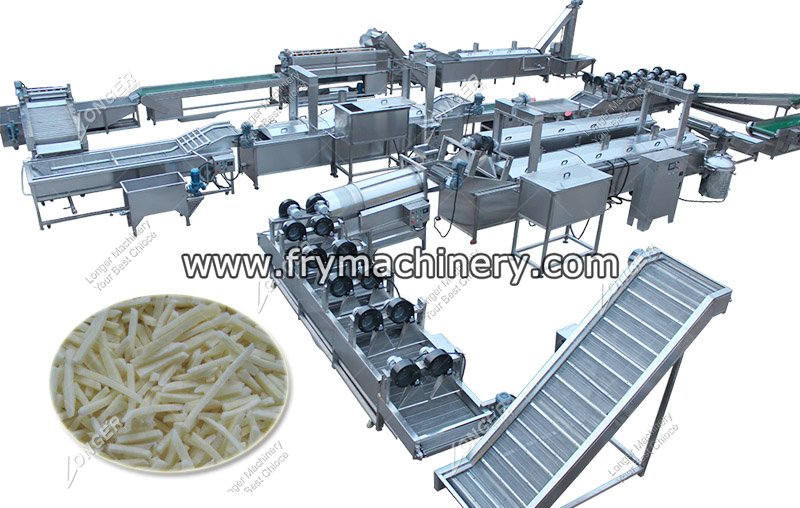

Automatic French Fry Manufacturing Processing Equipment
- Capacity:300 kg/h
- Processing Objects:Fresh potatoes
- Brand:LONGER Machinery
- Warranty Time:12 Months
Features

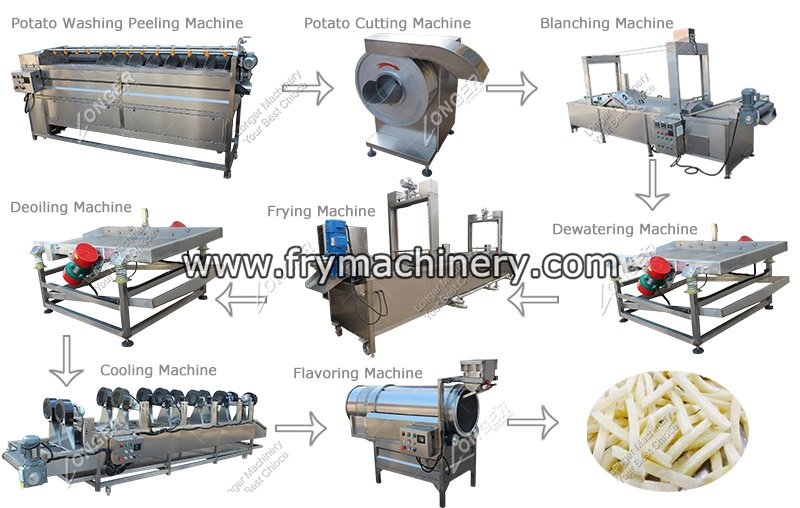

French fry manufacturing equipment processing flow: Potato peeling - Cutting - Rinsing - Blanching - Vibrating water removing - Frying - Oil removing - Flavoring - Weighing packaging.
1. Peeling: Potatoes are first cleaned and peeled by a potato washing and peeling machine.
2. Cutting: The peeled potatoes are cut into strips by a high-speed potato cutting machine.
3. Rinsing: The cut fries are put into the rinser and rinse the surface with mucus.
4. Blanching: The cleaned French fries are put into the blanching machine for blanching, in order to passivate the oxidase in the fries to prevent deterioration of color and accelerate dehydration.
5. Vibration dewatering: After blanching the French fries into the vibration drain machine to remove excess water.

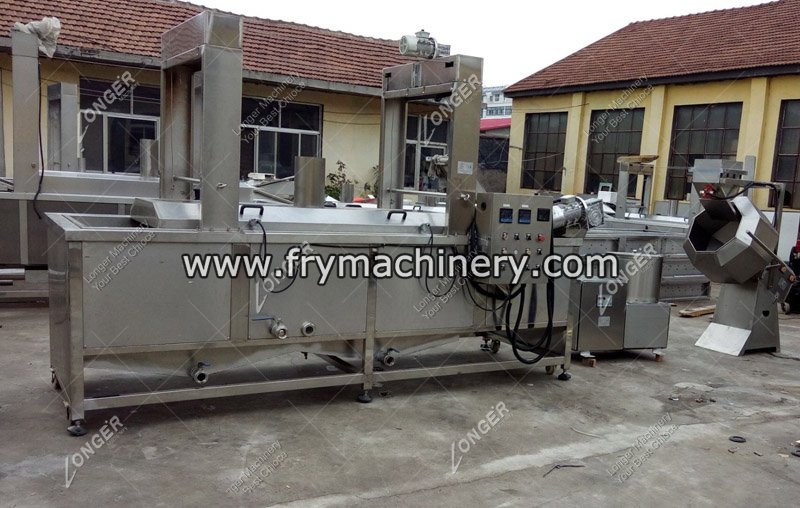

6. Frying: The fries after going to the water are sent to the fryer for frying treatment by the lifting conveyor.
7. Air-dried deoiling: The fried fries are drained after being air-dried and then fed into a seasoning machine.
8. Mixing: The blender has a dip-type seasoning roller, which fully controls the speed of rotation and the material. It is equipped with an automatic powder feeding device that can adjust the size of the powder to be fed and fully mix the fries and seasoning powder.
9. Weighing and Packaging: The fries that are tasted are sent to the packaging machine for vacuum packaging or ordinary packaging. If necessary, a weighing mechanism can be added.
After-sale Service for French Fry Processing Equipment
After-sale Service for French Fry Processing Equipment
(1) The machine is guaranteed for one year and the wearing parts are guaranteed for six months. From the date of purchase, if there is a quality problem during the warranty period, the company will be responsible for maintenance free of charge.
(2) The company provides paid services if it is caused by improper use of the customer. If parts need to be replaced, only part cost costs will be charged.
(3) When the user needs service, please contact the after-sales service department.
French fries machine manufacturer provides you with detailed product price, product pictures and other product introduction information of French Fries & potato chips production line. You can directly contact the manufacturers to obtain specific information: +8618595717505
French fries machine working video:
Technical Data
| Item | Parameter |
| 1. Potato Elevator |
0.75kw/380v/50HZ 2000*800*2000mm Capacity:2000kg/h |
| 2. Potato Washing Peeling Machine |
4.75kw/380v/50HZ 2600*900*1500mm Capacity:2000kg/h |
| 3. Sorting Conveyor Line |
0.75kw/380v/50HZ 3000*900*900mm Capacity:2000kg/h |
| 4. French Fries Cutter Machine |
1.5kw/380v/50HZ 950*800*950mm Capacity:700kg/h |
| 5. Rinsing Machine |
5.5kw/380v/50HZ 4000*1600*900mm Capacity:1000kg/h |
| 6. Blanching Machine |
125kw/380v/50HZ 4000*1600*950mm Capacity:700kg/h |
| 7. Air Dewatering Machine |
7.1kw/380v/50HZ 4000*1200*1400mm Capacity:1000kg/h |
| 8. French Fries Frying Machine |
123kw/380v/50HZ 4500*1200*2600mm Capacity:300kg/h |
| 9. Vibrating Oil Removing Machine |
1.5kw/380v/50HZ 1500*1000*1300mm Capacity:500kg/h |
| 10. Air Drying Machine |
7.1kw/380v/50HZ 4000*1200*1600mm Capacity:1000kg/h |
| 11. Elevator |
0.75kw/380v/50HZ 2400*800*2200mm Capacity:1000kg/h |
| 12. Flavoring Machine |
0.75kw/380v/50HZ 2600*1000*1600 Capacity:500kg/h |
