500 kg/h Frozen French Fries Making Machine for Sale
- Capacity:500 kg/h
- Processing Objects:Fresh potatoes
- Brand:LONGER Machinery
- Warranty Time:12 Months
Features

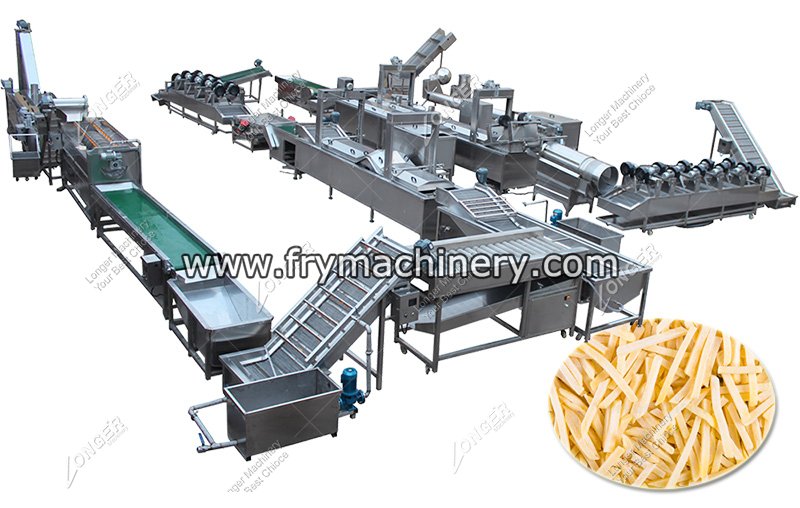

Whole Set Frozen French Fries Making Machine

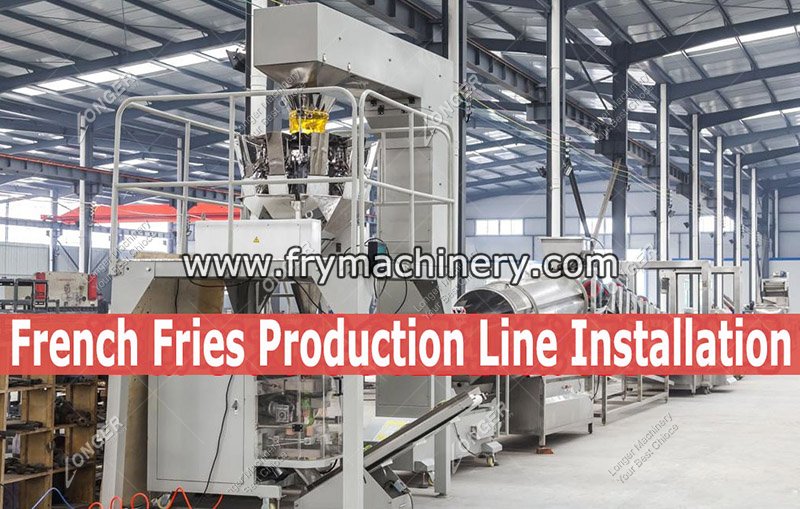

The whole production line is made of SUS304 stainless steel, which fully realizes automatic production.The blanching hot pool utilizes boiler steam direct heating method. During the working process, it is heated and converted to water, and after the blanching is completed, it is transported to the wind and drain, and then enters the frying line. After frying, cool and mix the ingredients, finally realize packing.![Frozen French Fries Making Machine](/uploads/allimg/180323/1-1P3231524262C.jpg)
The entire automatic French fries making machine has a high degree of automation, saves labor and greatly increases production efficiency.

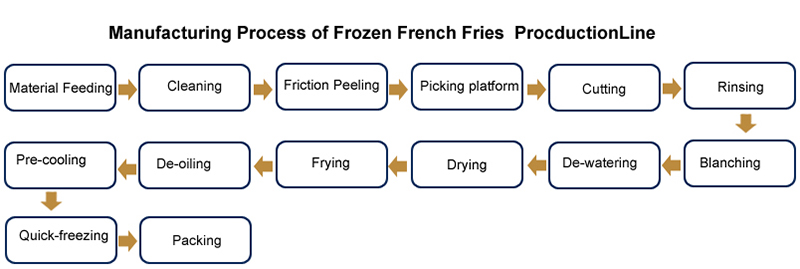

Frozen French fries have become one of the foods favored by many consumers because of its fast, simple and delicious taste. At the same time, frozen French fries are fast-selling fast-food products in frozen foods. After cleaning the peeled fresh potatoes, they go through the picking line and enter potato cutting machine. The size of French fries can be adjusted according to customer requirements. After the blanching line, the starch on the surface of the potato French fries is removed and the color of French fries is kept so that it does not turn black. After blanching, after the air line can effectively remove the moisture on the surface of the potato strips, and then enter the frying line. Frozen French fries are fried for a short time and then cooled by air-cooled drains before entering the quick-freezing machine and packaging machine. Consumers buy frozen French fries and heat for a few more minutes to eat. This speed fries are widely used in distribution centers and distribution plants in the fast food industry such as KFC, McDonald's.
![French Fries Making Machine](/uploads/allimg/180323/1-1P3231522292I.jpg)

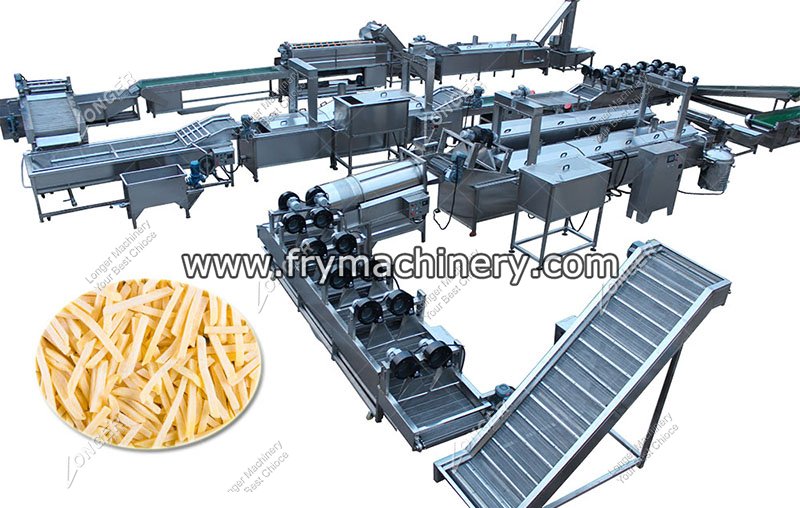

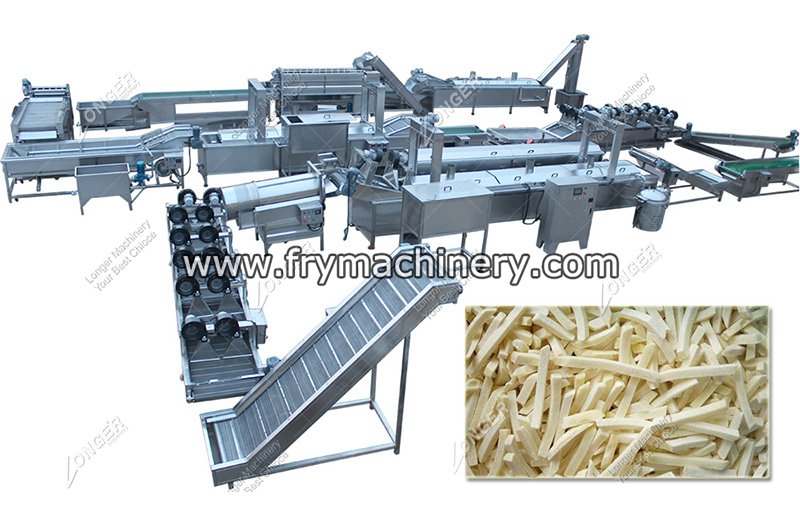

Introduction of Automatic Frozen French Fries Making Machine
01 Hoist: Automatically raise the material, convenient and efficient, save manpower.
02 Cleaning peeling machine: Automatic potato cleaning and peeling, high efficiency and energy saving.
03 Picking Lines: Removed pitted portions of potatoes to improve quality.
04 Cutting Machine: Efficient cutting, adjustable size.
05 Conveyor: Lifting Potato Strips to Drifting Machine.
06 Bleaching machine: Removes starch from potato strips, inhibits active enzyme activity, protects color.
07 Vibrate dewatering machine: Remove the scraps that are too small and vibrate to remove excess moisture.
08 Air-cooled line: Air-cooling action removes the moisture from the French fries and feeds it to the French fries fryer.
09 French fries fryer: Deep-frying color and optimize taste.
10 vibrating Deoiler: Vibrating to remove excess oil of fried French fries.
11 Air cooling line: Cooling to blow off the excess oil on the surface, fully cooling the French fries to enter the freezer.
12 Freezer: Frozen French fries are easy to store and transport after packing to optimize the taste.
13 Packing Machine: Packing weight according to customer requirements, fully-packaged frozen French fries
![Frozen French Fries](/uploads/allimg/180323/1-1P3231549101J.jpg)
![Frozen French Fries](/uploads/allimg/180323/1-1P3231549101J.jpg)
Technical Data
Item | Power | Dimension |
1. Elevator | 0.75kw/380v/50Hz | 2000*800*1600mm |
2. Potato Cleaning Peeling Machine | 4.75kw/380v/50Hz | 3100*900*1500mm |
3. Sorting Conveyor | 0.75kw/380v/50Hz | 3000*900*900mm |
4. Potato Cutting Machine | 1.1kw/380v/50Hz | 950*800*950mm |
5. Rinsing Machine | 5kw/380v/50Hz | 5000*1600*900mm |
6. Blanching Machine | 70kw/380v/50Hz | 6000*1600*950mm |
7. Air De-water Machine | 15kw/380v/50Hz | 4000*1200*1400mm |
8. Elevator | 0.75kw/380v/50hz | 1500*800*1300mm |
9. Electric French Fries Fryer | 203kw/380v/50Hz | 7000*1200*2600mm |
10. Oil Filter Machine | 1.5kw/380V | 1100*600*950mm |
11. Vibrating De-oil Machine | 1.5kw/380v/50Hz | 1500*1000*1300mm |
12. Air Drying Machine | 8kw/380v/50Hz | 4000*1200*1600mm |
13. Elevator | 0.75kw/380v/50Hz | 2000*800*2200mm |
14. Flavoring Machine | 1.5kw/380v/50hz | 2400*1000*1600mm |
FAQ
Q: What is the cost for Frozen French fries processing plant?
A: If you want teh specific cost, you need to confirm the following question:1)You want automatic or semi automatic, 2) Production capacity you want? 3) Need packing or not?
Q: Can you send 500 kg/h French fries making machine price and video to me?
A: Sure, you can leave your email here, our sales will send you machine details soon.
Q: Are you manufacturer or trading company?
A: We have our own factory, welcome you visit our factory and machines.
Q: What about the production capacity of Frozen french fries machine you have?
A: Usually from 100 kg per hour to 1000 kg per hour, special requirement can be customized.
A: If you want teh specific cost, you need to confirm the following question:1)You want automatic or semi automatic, 2) Production capacity you want? 3) Need packing or not?
Q: Can you send 500 kg/h French fries making machine price and video to me?
A: Sure, you can leave your email here, our sales will send you machine details soon.
Q: Are you manufacturer or trading company?
A: We have our own factory, welcome you visit our factory and machines.
Q: What about the production capacity of Frozen french fries machine you have?
A: Usually from 100 kg per hour to 1000 kg per hour, special requirement can be customized.
